Accessing CFSAI with the command line

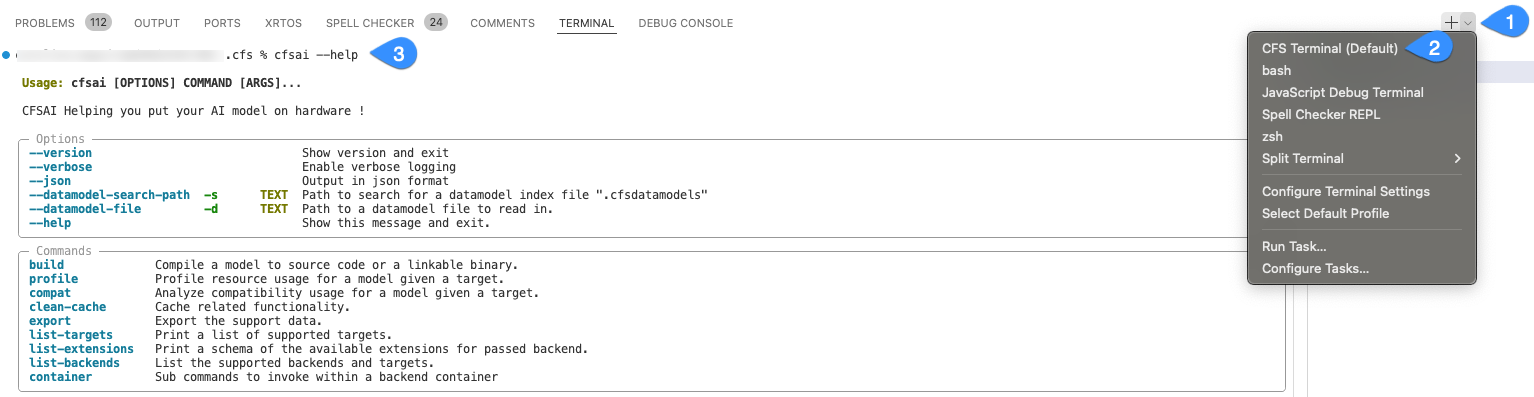

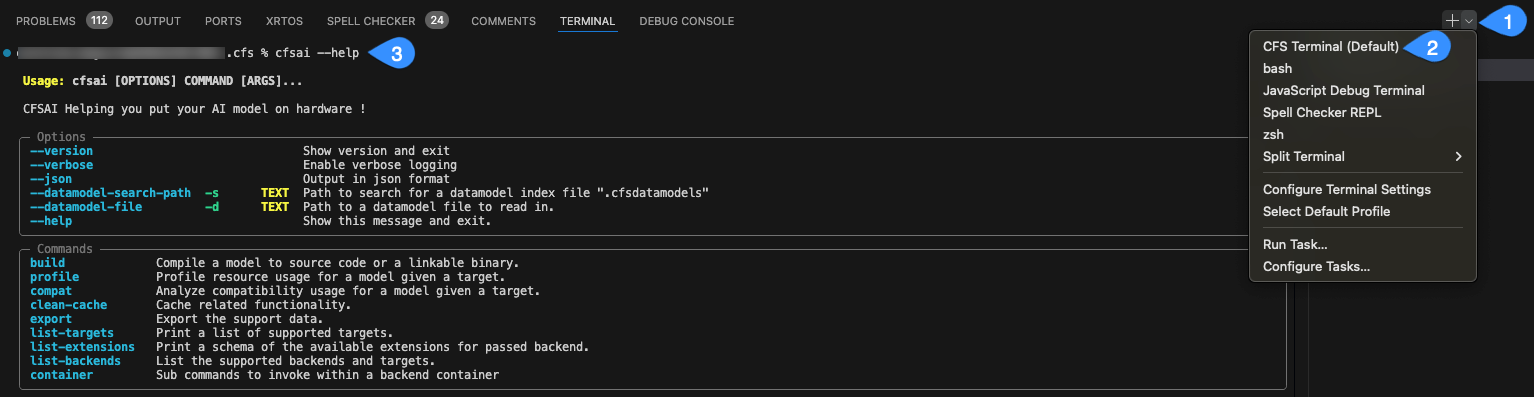

To access cfsai, open a new terminal (View > Terminal or `Ctrl+``). Then complete the following steps:

  1. In the terminal panel, click the dropdown arrow next to the + icon.
  2. Select CFS Terminal from the list.
  3. Run your command, for example:
   cfsutil cfsai --help

Accessing cfsai Accessing cfsai

Note

To run cfsai from a system terminal outside VS Code:
- Windows: <CFS-Install>/Tools/cfsai/bin/cfsai.exe
- Linux/macOS: <CFS-Install>/Tools/cfsai/bin/cfsai

Help

You can pass --help at any level to view available options:

  • cfsai --help provides top-level help.
  • cfsai build --help shows all options for the build command.
  • cfsai compat --help shows all options for the compat command.
cfsai --help

Top level options

The following options are available for all cfsai commands.

Flag / Option Description
--version Show the current CFSAI version.
--verbose Enable detailed logging of internal steps (for example, datamodel loading, parsing).
--json Format log messages as JSON. Affects console output only, not generated files.

--verbose and --json must be placed before the subcommand.

Example

cfsai --verbose build --model model.tflite --target MAX32690.CM4
cfsai --version

Data model options

CFSAI relies on a .cfsdatamodels index file to look up supported SoCs, cores and accelerators. A default data model is bundled with the installation, but users can override it by generating their own data model index file. See the CodeFusion Studio GitHub repository for instructions on generating a data model index file.

Use either --datamodel-search-path to point to a directory containing the .cfsdatamodels file, or --datamodel-file to specify the JSON file directly.

Flag Description
--datamodel-search-path, -s Path to a folder that contains a .cfsdatamodels file.
--datamodel-file, -d Path to a specific data model JSON file. Expects a valid schema-compliant JSON file.

Use a directory as the search path

cfsai --datamodel-search-path /path/to/codefusion-studio-repo/packages/cfs-data-models/socs list-targets

Specify the index file directly

cfsai --datamodel-file /path/to/codefusion-studio-repo/packages/cfs-data-models/socs/max32690-tqfn.json build --model m4/hello_world_f32.tflite --target "MAX32690[TQFN].CM4"
