An overview of the CodeFusion Studio layout and navigation.

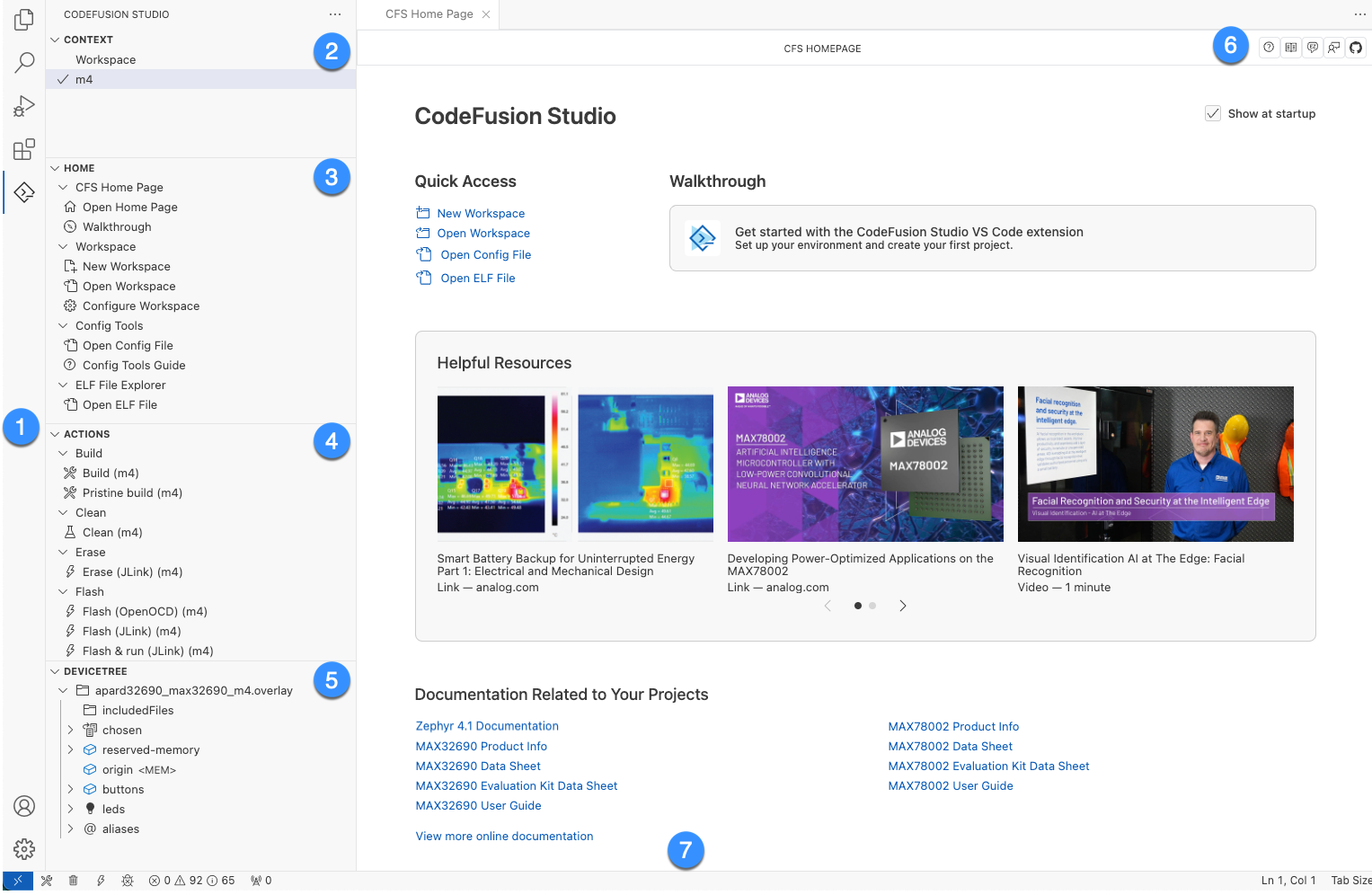

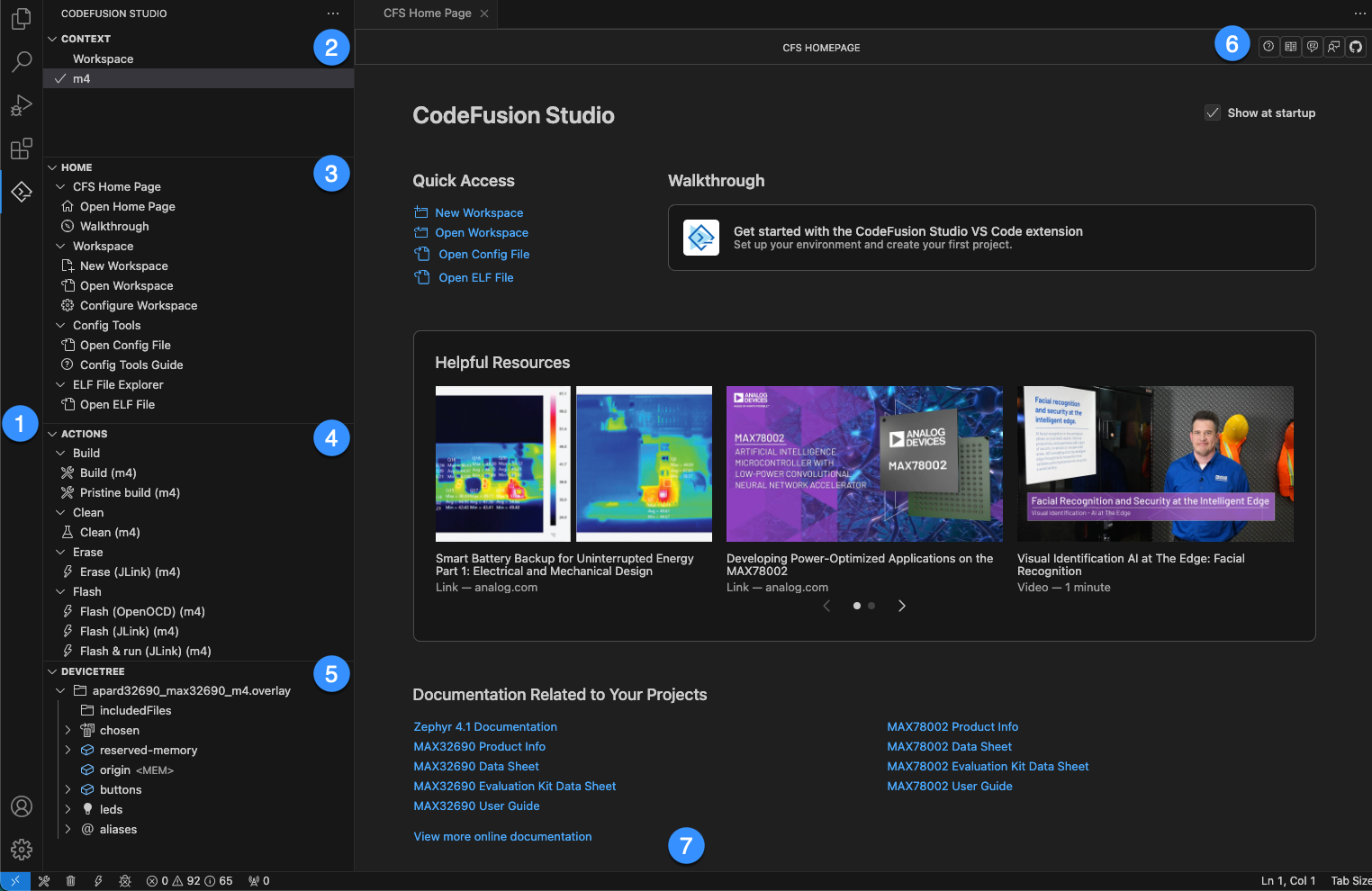

CodeFusion Studio interface CodeFusion Studio interface

  1. VS Code Activity Bar
    A vertical bar on the left side of the window that provides quick access to CodeFusion Studio features. Click the CFS icon cfs-icon cfs-icon to open the CFS Home Page.

    On the CFS Home Page, the following views are available:

  2. Context view
    Displays the current project and allows switching between projects in the workspace.

  3. Home view
    Provides access to key actions such as workspace creation and configuration, ELF file visualization, and config file access.

  4. Actions view
    Displays tasks such as build, clean, erase, flash, and debug. The available actions update dynamically based on the selected project in the Context view(2).

    Tip

    Click Copy and Edit Copy and Edit tasks in the Actions viewCopy and Edit tasks in the Actions view next to a task to create a new custom task.

  5. Device tree view
    Displays hardware components when opening a device tree file.

  6. Support resources
    Provides links to CodeFusion Studio support resources. See Help for more information.

  7. VS Code Status Bar
    Displays information and actions that relate to your workspace. Use the icons on the left of the status bar to perform build tasks.

Note

For more information on navigating VS Code, see Visual Studio Code User Interface
